Mobile Boat Hoist
Safe boat lifting for your marina. Mobile boat hoists from 15 tons and heavy-duty travel lifts.
Boat hoist solutions
Mobile boat hoists are used in marinas, yacht harbors and shipyards to haul boats out of the water, transport them on land and launch them. Sling adjustment, a rotating carrier arm and a precise steering system ensure safe lifting without damaging the hull.
Applications
Key features
- Capacities from 15 tons, with larger tonnages in the heavy-duty series
- Hydraulic drive and multi-point synchronized lifting
- Forward-reverse, left-right and 360° rotation
- Sling adjustment for lifting without damaging the hull
- Stainless steel piping and corrosion-resistant construction
- Wireless remote control and remote diagnostics
Product selection table
Technical values are taken from Veltix catalogs and technical specification tables; they can be customized to your project.

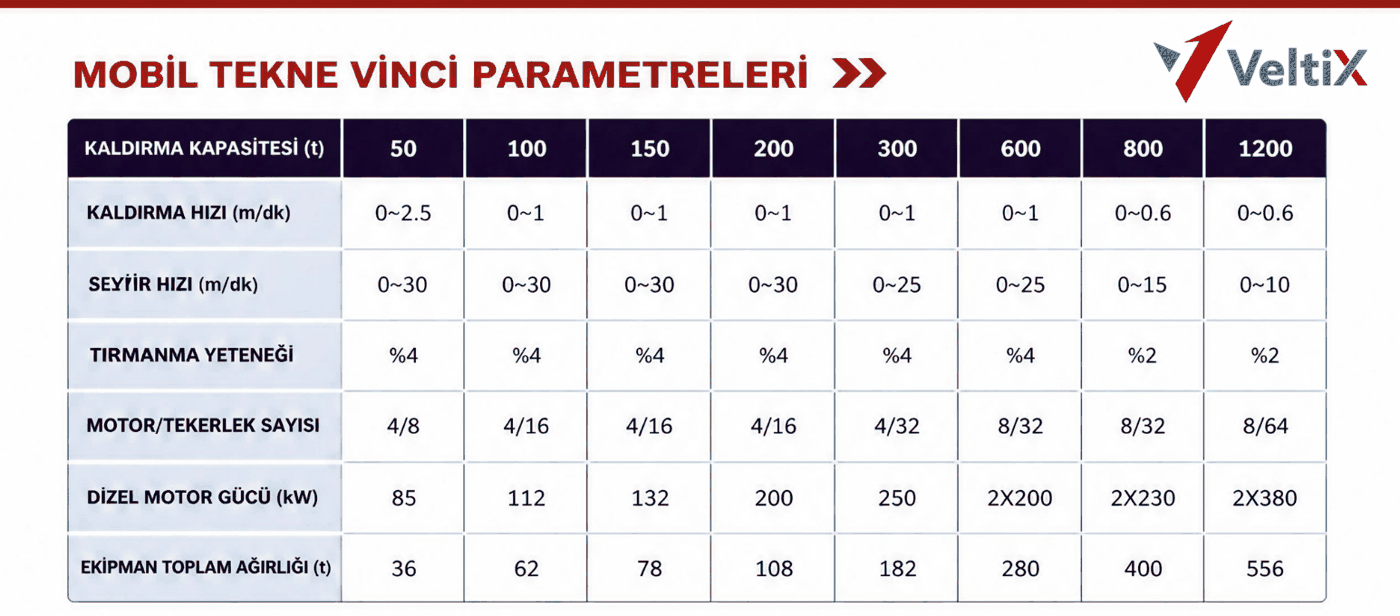

VLT-MTA — Mobile boat hoist parameters
| LIFTING CAPACITY (t) | 50 | 100 | 150 | 200 | 300 | 600 | 800 | 1200 |
|---|---|---|---|---|---|---|---|---|
| LIFTING SPEED (m/min) | 0~2.5 | 0~1 | 0~1 | 0~1 | 0~1 | 0~1 | 0~0.6 | 0~0.6 |
| TRAVEL SPEED (m/min) | 0~30 | 0~30 | 0~30 | 0~30 | 0~25 | 0~25 | 0~15 | 0~10 |
| GRADEABILITY | 4% | 4% | 4% | 4% | 4% | 4% | 2% | 2% |
| NUMBER OF MOTORS/WHEELS | 4/8 | 4/16 | 4/16 | 4/16 | 4/32 | 8/32 | 8/32 | 8/64 |
| DIESEL ENGINE POWER (kW) | 85 | 112 | 132 | 200 | 250 | 2×200 | 2×230 | 2×380 |
| TOTAL EQUIPMENT WEIGHT (t) | 36 | 62 | 78 | 108 | 182 | 280 | 400 | 556 |
VLT-MT — Standard mobile boat hoist
| Model | VLT-MT-15 | VLT-MT-25 | VLT-MT-35 | VLT-MT-50 | VLT-MT-75 | VLT-MT-85 | VLT-MT-100 |
|---|---|---|---|---|---|---|---|
| Lifting capacity | 15 t | 25 t | 35 t | 50 t | 75 t | 85 t | 100 t |
| Movement | Forward-reverse, left-right, 360° rotation about its own axis | ||||||
| Girders | Box-type main and end girders | ||||||
| Control | Wireless remote control (optional) | ||||||

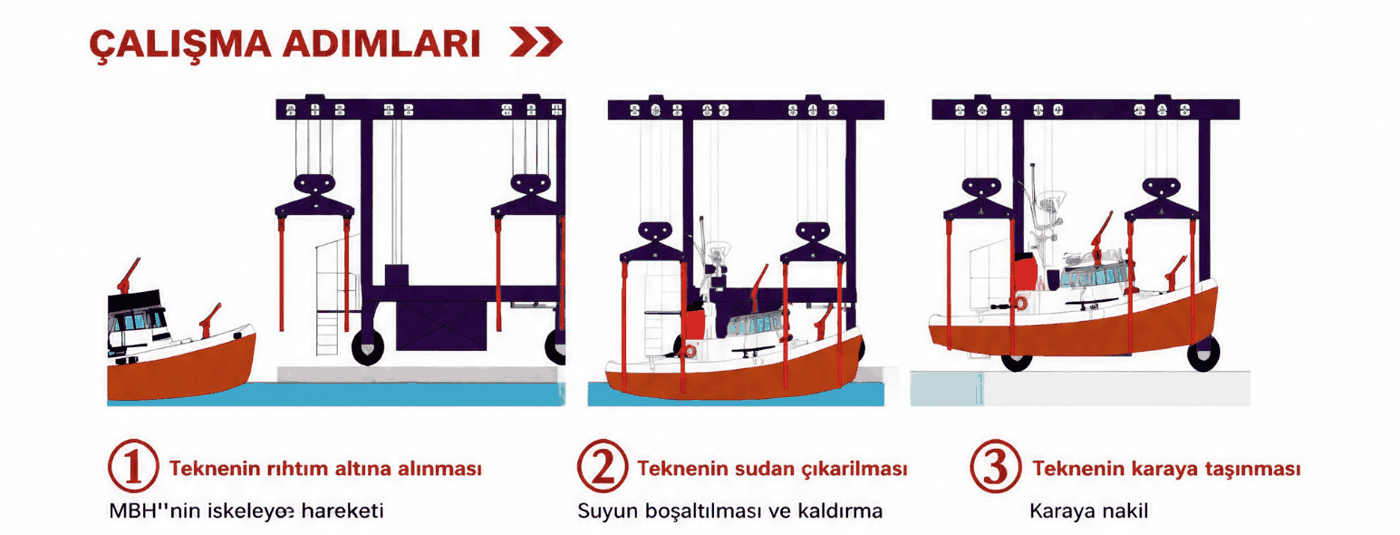

Operating steps
Application examples
Frequently asked questions
What is a travel lift?
It is a mobile gantry crane that passes slings under the boat, lifts it out of the water and transports it on land.
Which capacity should I choose?
The weight, length and beam of the heaviest boat in your marina, together with the dimensions of the haul-out slip, determine the capacity.
Why do the haul-out slip dimensions matter?
For the hoist to run on the piers, the slip width, pier width and pier elevation are assessed together.
